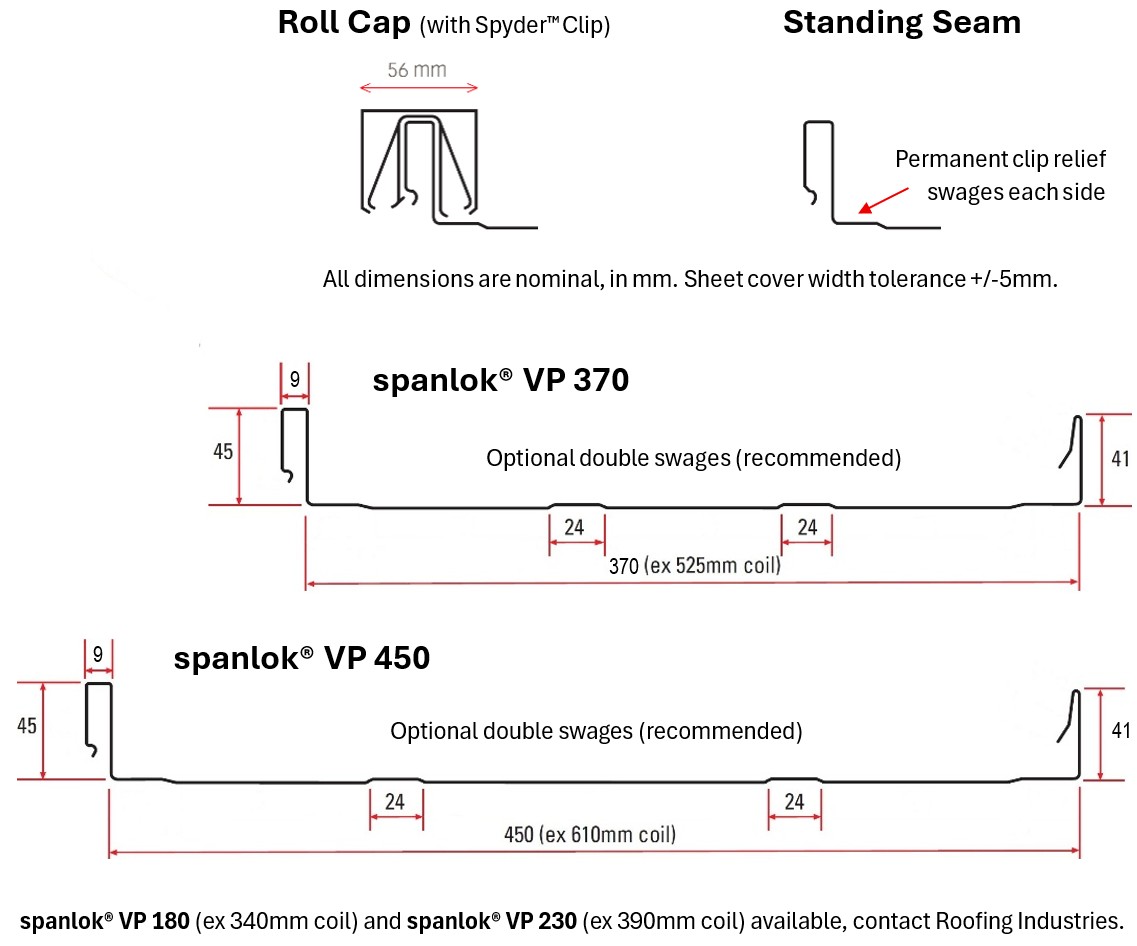

Part of the Eurostyle range, Spanlok is a standing seam profile that can be used for roofing and cladding applications. Spanlok can be installed without the need for solid substrate support. It can be directly fixed to purlins and girts, significantly reducing construction costs. Spanlok features a distinctly higher 45mm rib profile, for aesthetic shadow lines, and has excellent spanning capability. Spanlok is available in varying tray widths and profile shapes.
Get in touch

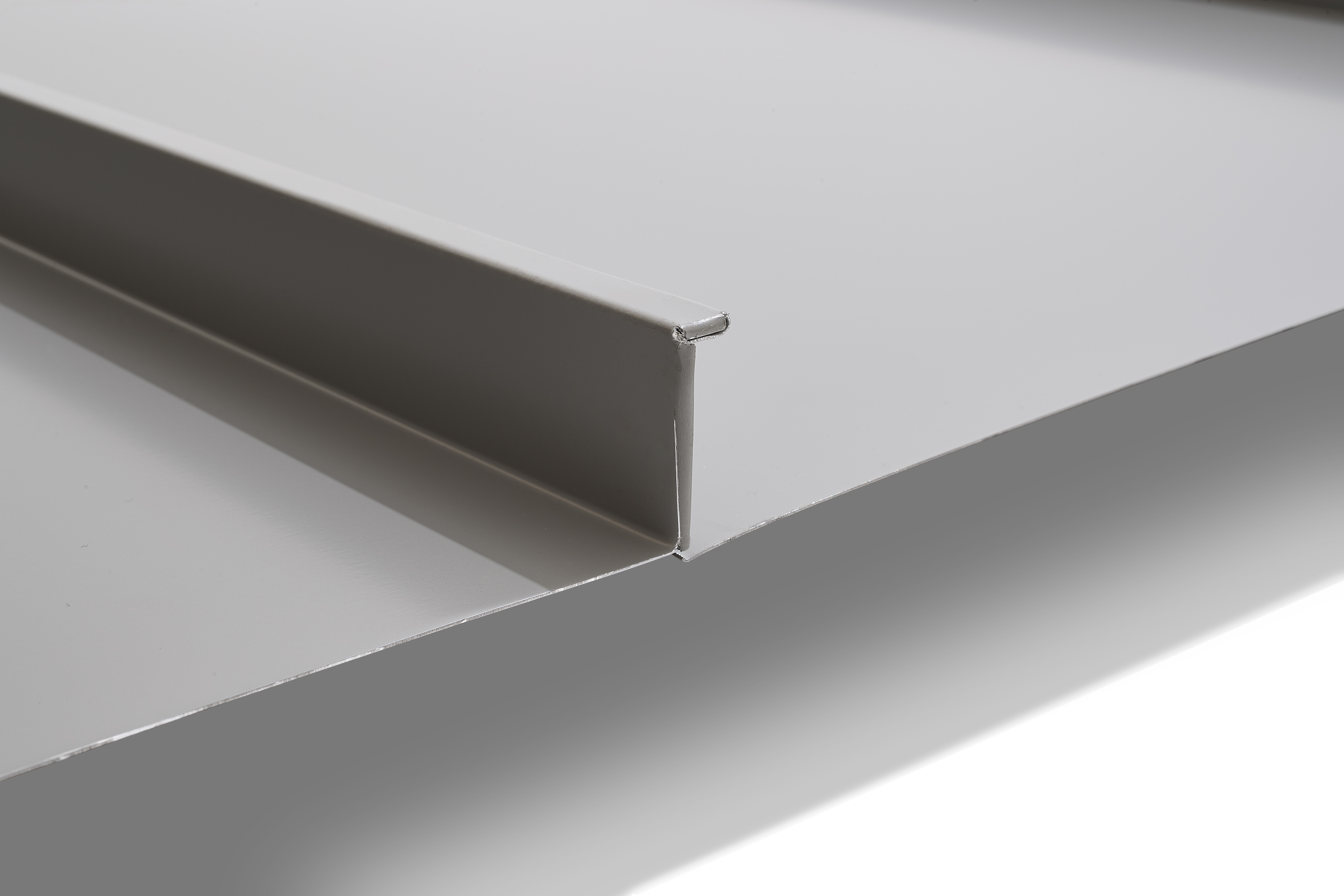

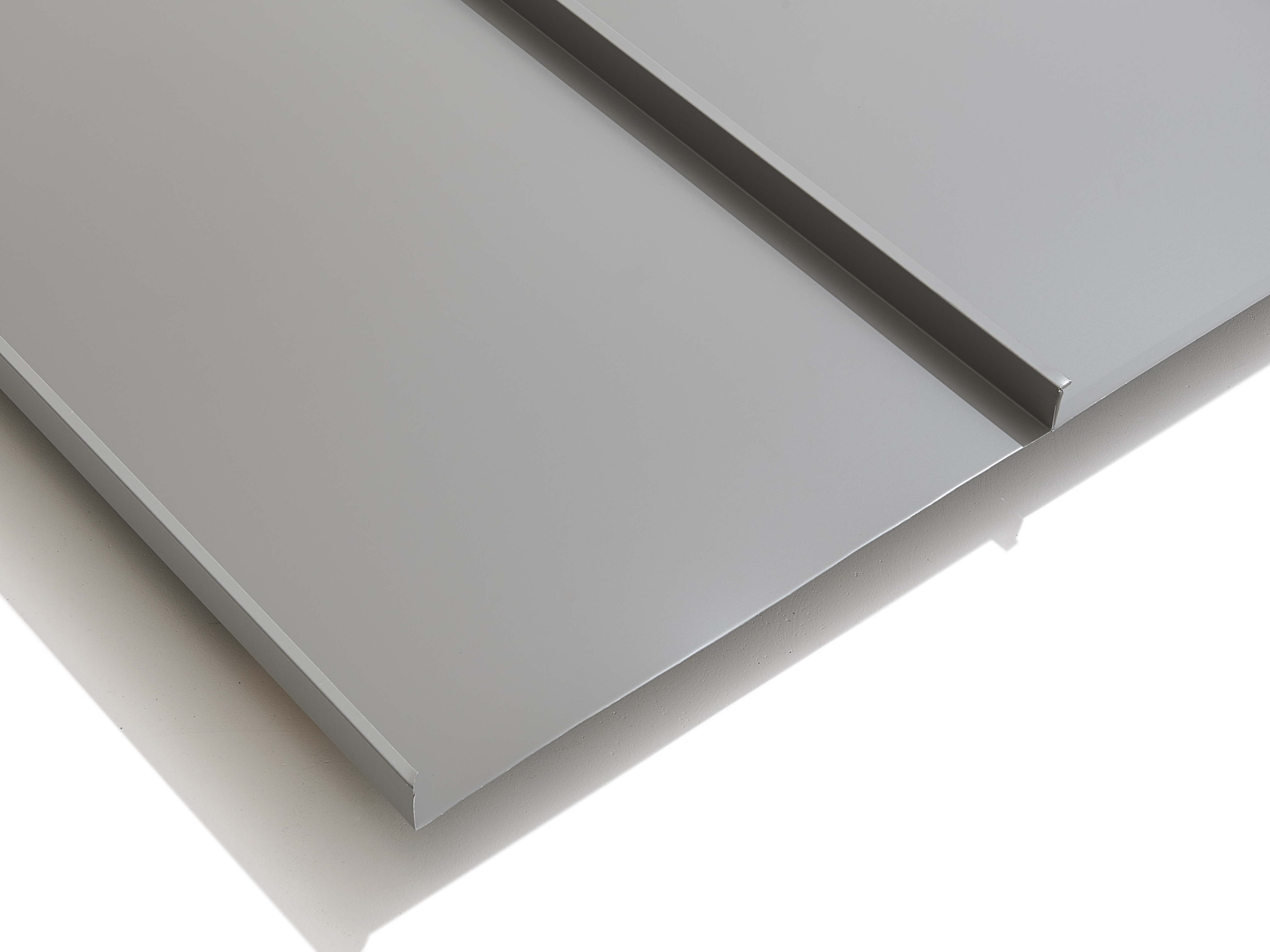

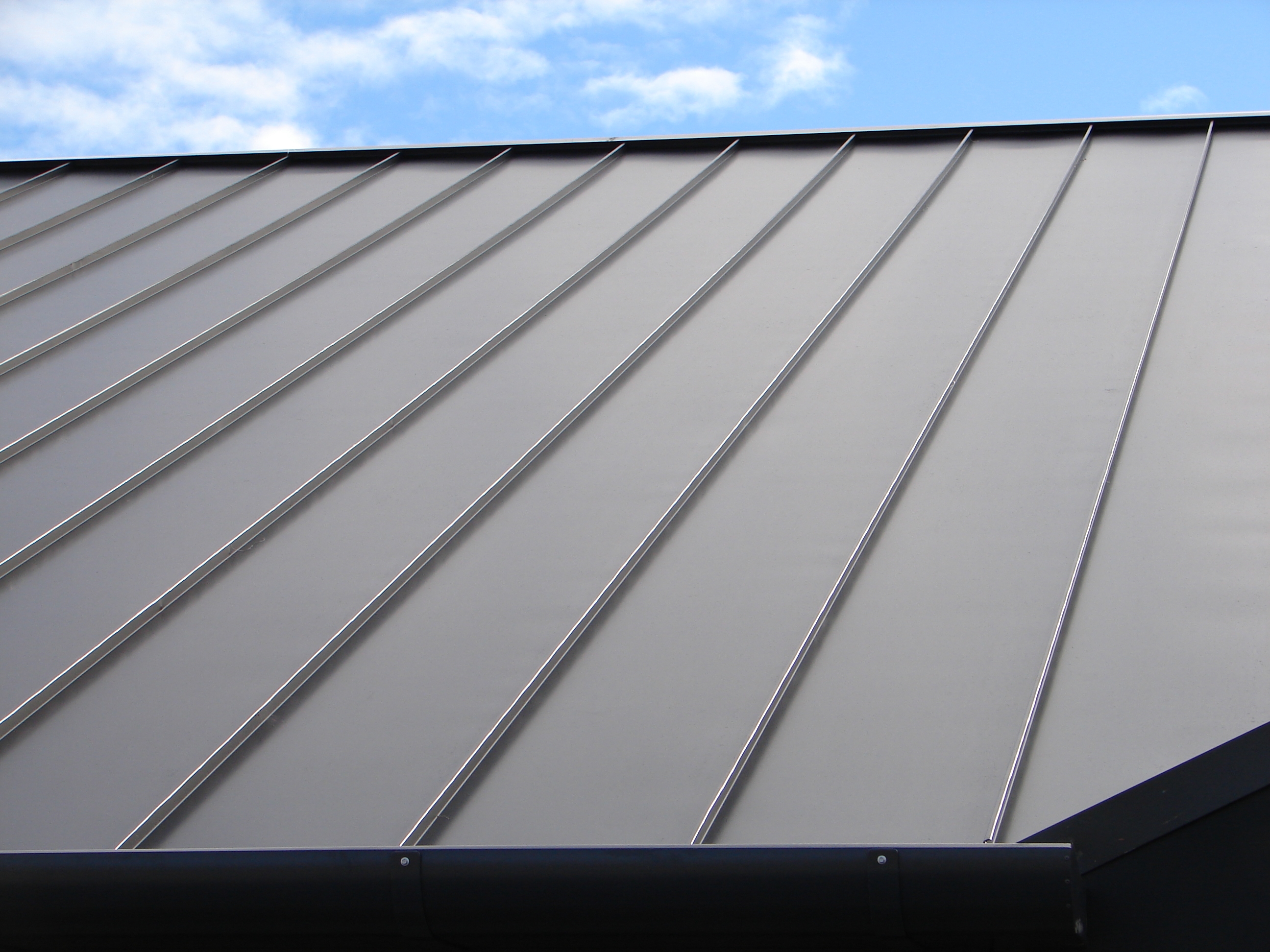

Displays a wider effect of the seam providing a striking appearance in both roofing and cladding situations.
• 12mm Aesthetic flat rib
• Waterfall feature at Wall/roof join
• No swages
• Installed over plywood
• Curving- both Convex and Concave
• Most metal substrates and paint coatings
.jpg)
A traditional tray profile which offers superior performance in high winds, rainfall and snow
• Suitable for Drape Curving
• Ideal roof in snow conditions at low pitch
• Installed over plywood
• Suitable for use with Copper, Natural Zinc and Aluminium substrates
• Roofing application only
Displays the boldest effect of any of the Eurostyle® profiles with highly defined longitudinal lines providing light and shade variations
• Board and Batten effect
• Roofing and cladding
• Five (5) Standard pan widths
• Installed over plywood with drainage matting for air flow recommended

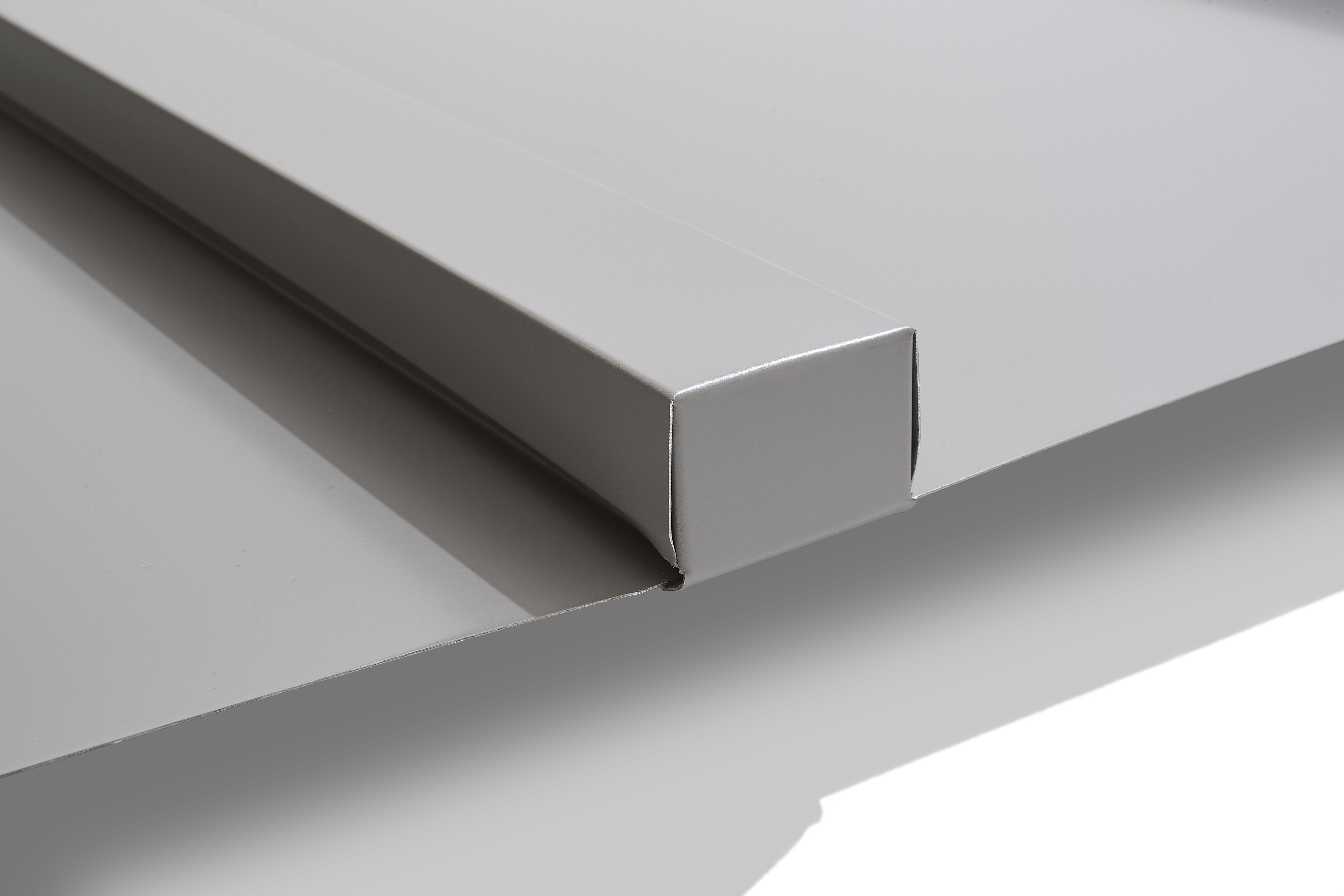

A seamed cap profile that offers variable shading in any roof or wall cladding application, yet providing minimalistic lines
• Can be installed without change of Pitch Flashing. (More flowing effect)
• Ideal for Convex Curving
• Particularly suitable as Copper and Natural Zinc substrate
• Installed over plywood with drainage mat for airflow recommended

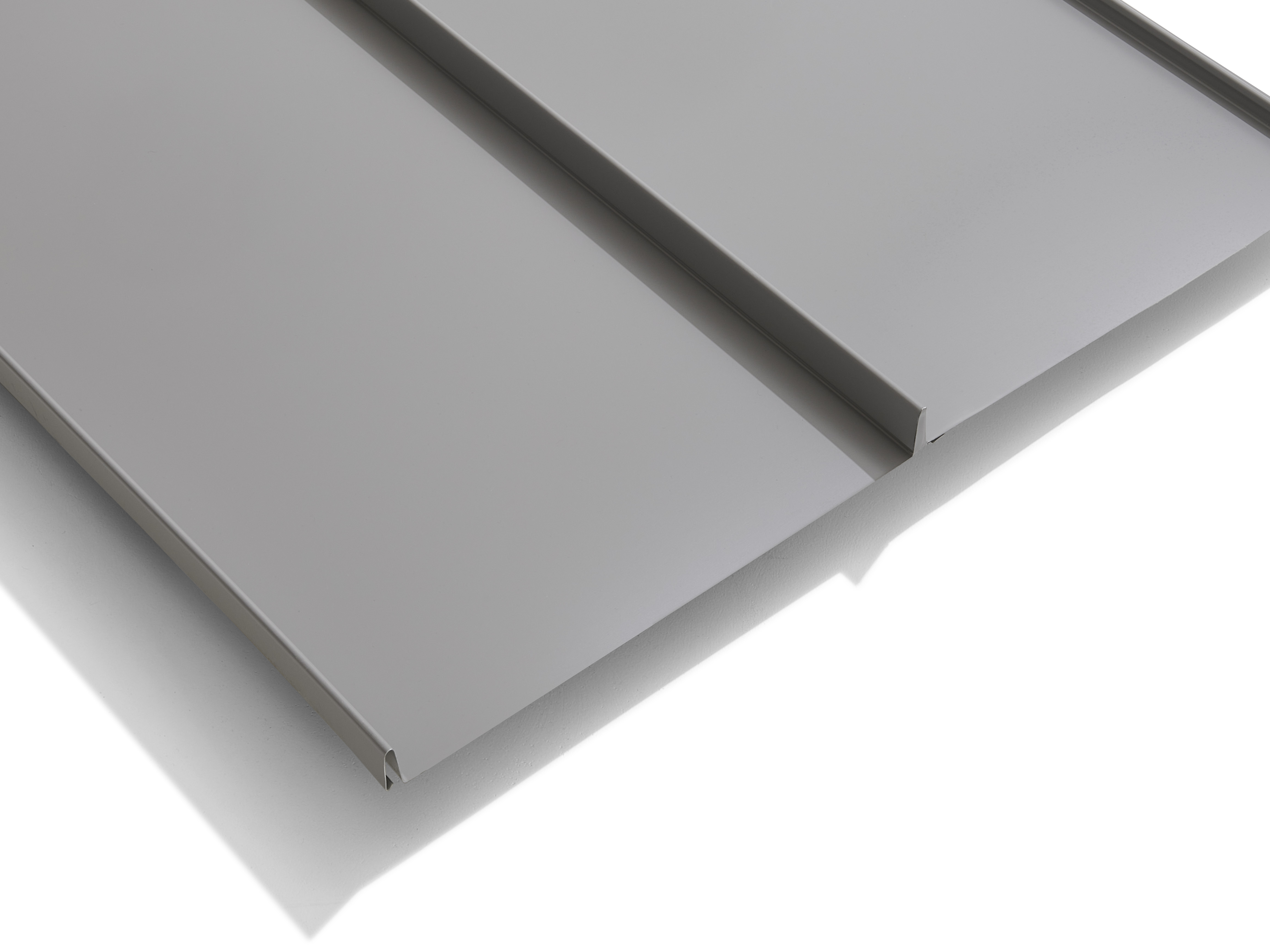

Ideal cladding profile that provides a similar but slightly bolder appearance to Double Standing Seam, however is secret screw fixed and clipped together rather than seamed. Recommended maximum length 6000mm
• Ideal Cladding profile
• Installed over plywood
• Nail Strip - No clips
• Recommended maximum sheet length – 6000 mm
• Faster install

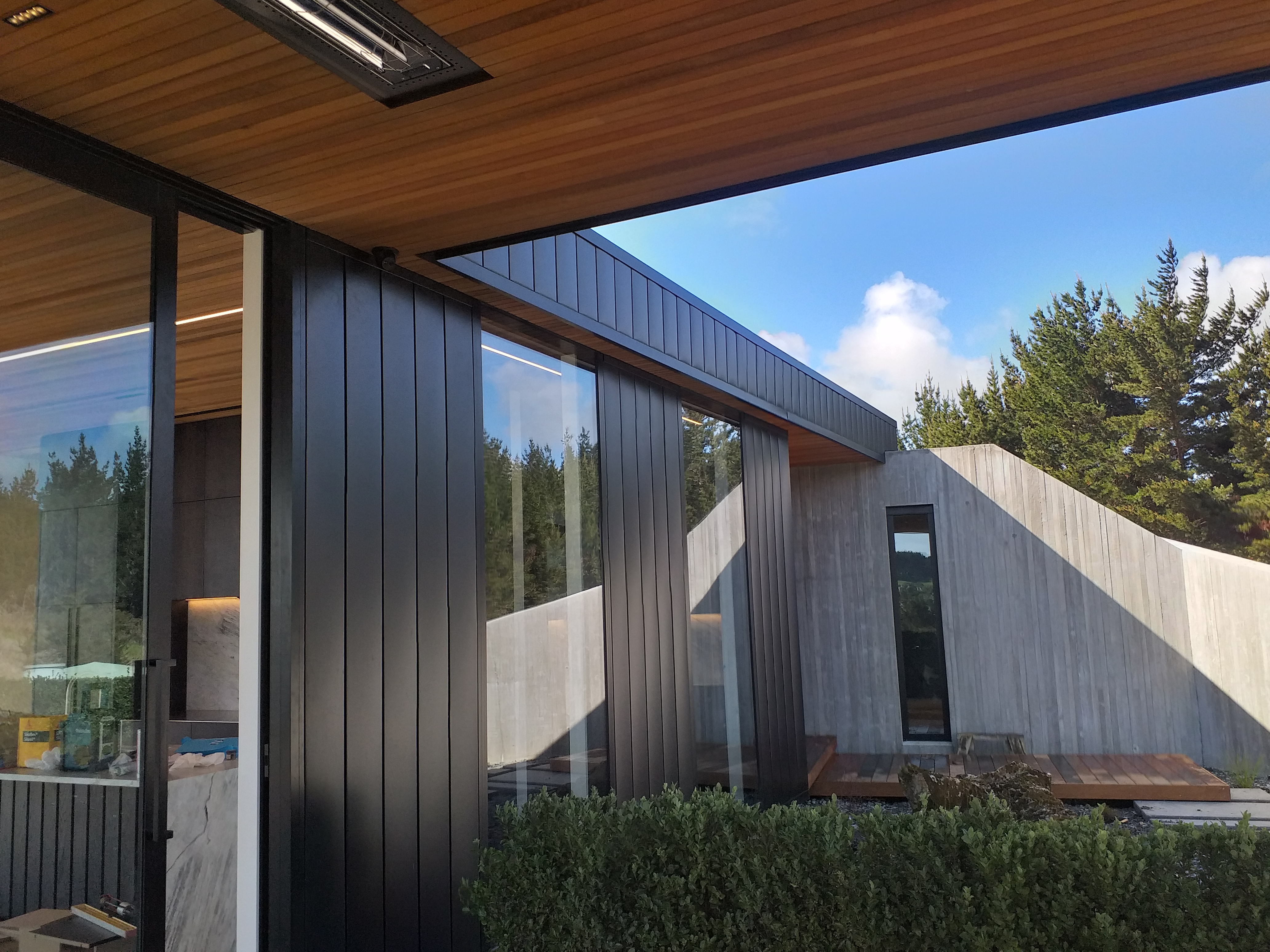

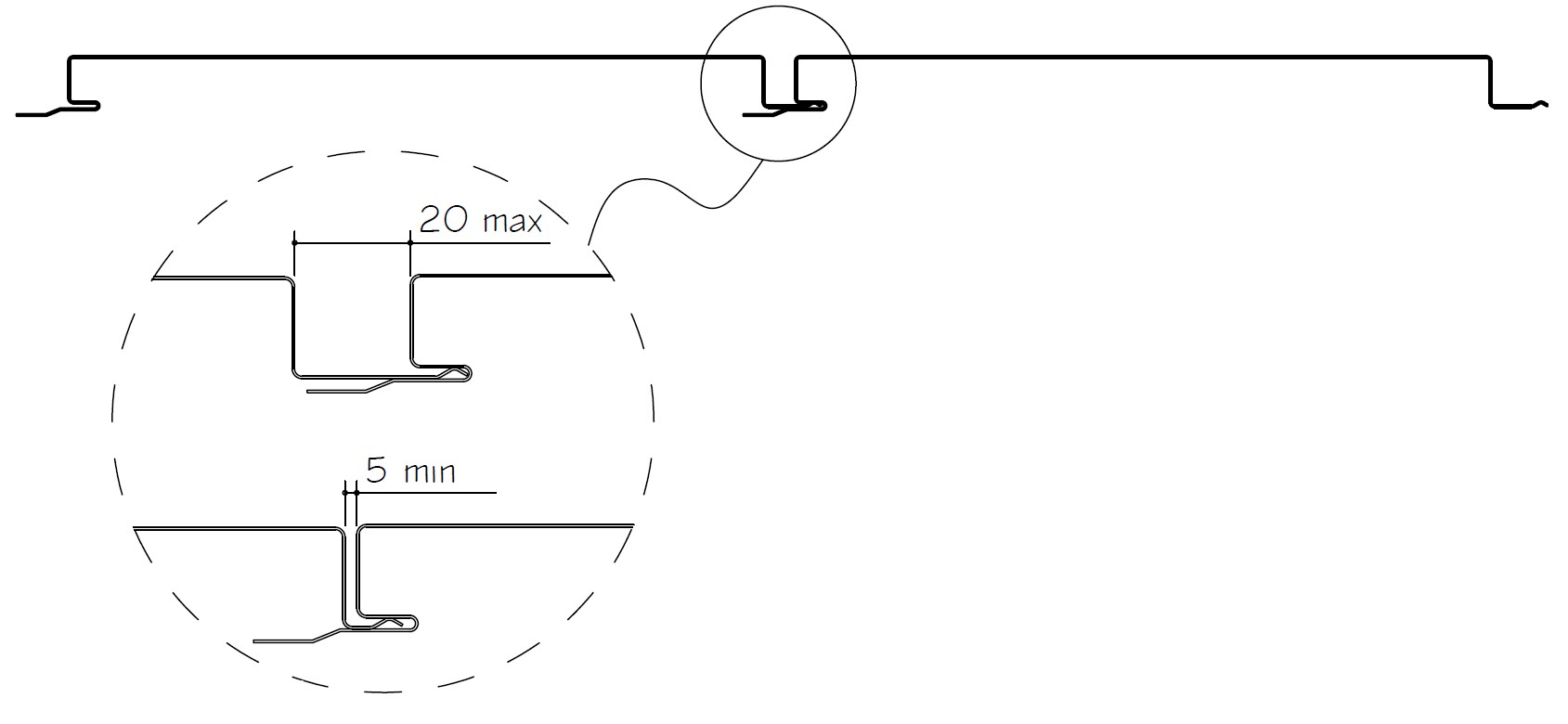

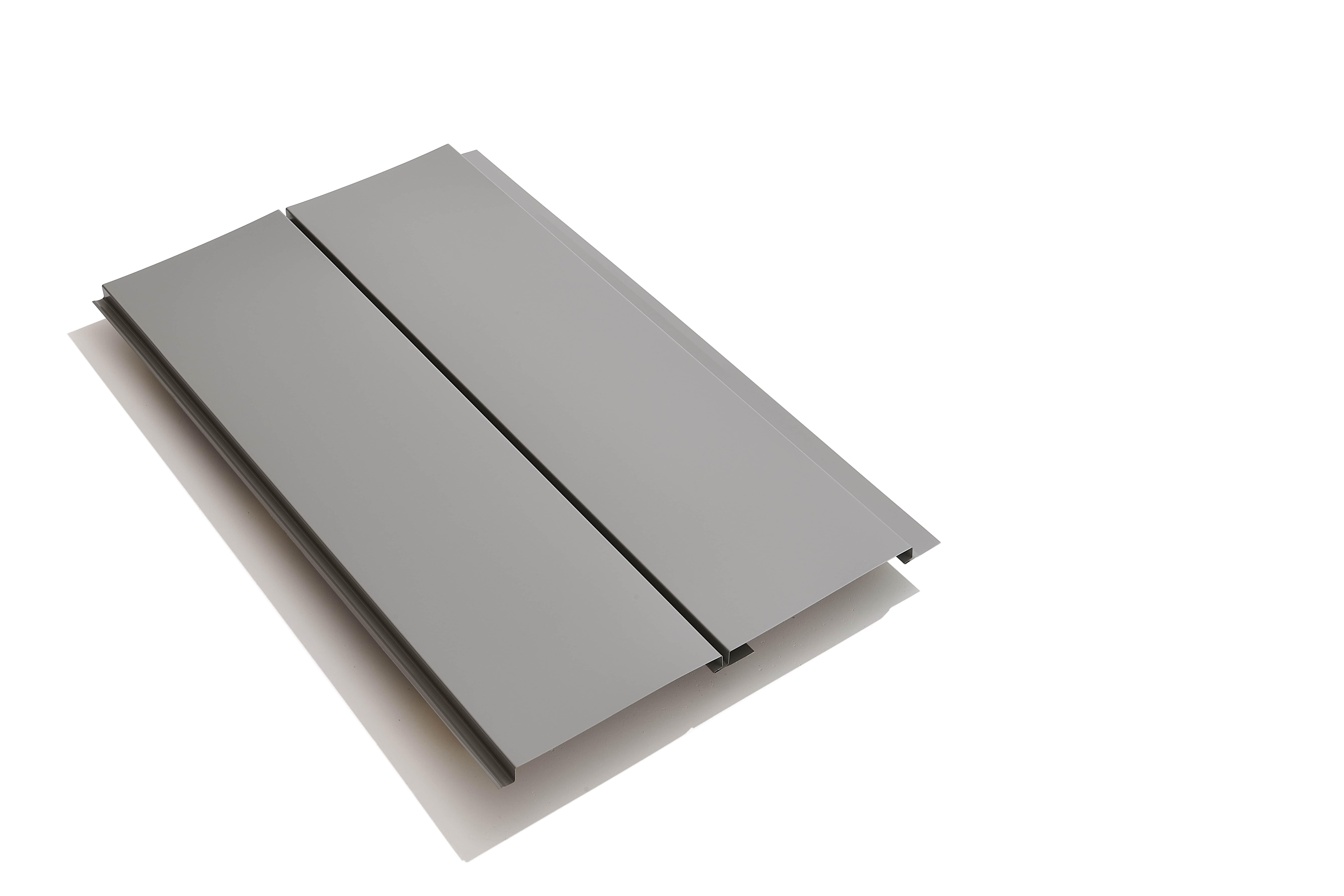

An interlocking panel available with negative detail variable recessed joint up to 15mm for soffits and wall paneling
.jpg)
Download the brochure below to get comprehensive profile technical information for this product
Epic™ , spanlok™ and eurolok™ series profiles are manufactured using a selection of aesthetically pleasing substrates and surface finishes meeting any challenging environmental, climatic, sustainability or design consideration.
A full range of matching accessories is available, including Ridging, Ridgecaps, Flashings, Underlays, Insulation, Fasteners, Rotary Roof Ventilators and Rainwater systems.
.avif)
.avif)
Fixings and fasteners are to be of an approved type, compatible with all materials, the environment and meeting the requirements of the NZ Building Code. Installation is to be in accordance with E2/AS1 and the NZ Metal Roof and Wall Cladding Code of Practice.
Get in touch if outside the scope of E2/AS1
Drawings can be found under CAD/PDF details on EBOSS
.avif){kind=icon}
Metal Roofing & Cladding maintenance brochure
Download guideAppropriate handling and storage of profiled metal roofing and cladding, translucent and transparent roofing products plus roofing accessories is important to prevent damage which in turn will limit performance once installed. The following guidelines should be strictly followed in order to ensure the project is completed satisfactorily and meets product warranty conditions.
Download guideEpic™ , spanlok™ and eurolok™ series profiles are manufactured using a selection of aesthetically pleasing substrates and surface finishes meeting any challenging environmental, climatic, sustainability or design consideration.
Below you can find the product installation guide and Building Product Information System (BPIS), available to download.
Installation GuideInstallation GuideBPIS Class 2BPIS Class 1With the architectural world continuously searching for the very latest in new products, design inspiration, and sound engineering practice, Roofing Industries is pleased to bring a revolutionary series of European inspired Roofing, Wall Panelling and Soffit Panels all manufactured using the very latest advances in German technology to the New Zealand Market. Eurostyle™ finds favour with those in the architectural and design industries that recognise and appreciate quality. Please click here to see the Eurostyle™ Brochure:
Download BrochureWe have partnered up with EBOSS, ProductSpec and MasterSpec to deliver an optimal content delivery method for our customers.
