Eurostyle® panelok®

Panelok is a recent innovation within the Eurostyle® stable of products as an external and internal “negative detail” metal wall and cladding system providing building designers with flexibility and style. Panelok’s® stunning visual effects ultimately complement modern residential and commercial architectural appeal. Manufactured in varying widths, metal substrates and with an extensive selection of appealing surface colours and finishes, panelok® incorporates a negative detail interlocking panel system.

Get in touch

Angle Seam

Displays a wider effect of the seam providing a striking appearance in both roofing and cladding situations.

• 12mm Aesthetic flat rib

• Waterfall feature at Wall/roof join

• No swages

• Installed over plywood

• Curving- both Convex and Concave

• Most metal substrates and paint coatings

Double Standing Seam

A traditional tray profile which offers superior performance in high winds, rainfall and snow

• Suitable for Drape Curving

• Ideal roof in snow conditions at low pitch

• Installed over plywood

• Suitable for use with Copper, Natural Zinc and Aluminium substrates

• Roofing application only

Roll Cap

Displays the boldest effect of any of the Eurostyle® profiles with highly defined longitudinal lines providing light and shade variations

• Board and Batten effect

• Roofing and cladding

• Five (5) Standard pan widths

• Installed over plywood with drainage matting for air flow recommended

Roll seam

A seamed cap profile that offers variable shading in any roof or wall cladding application, yet providing minimalistic lines

• Can be installed without change of Pitch Flashing. (More flowing effect)

• Ideal for Convex Curving

• Particularly suitable as Copper and Natural Zinc substrate

• Installed over plywood with drainage mat for airflow recommended

Snaplok

Ideal cladding profile that provides a similar but slightly bolder appearance to Double Standing Seam, however is secret screw fixed and clipped together rather than seamed. Recommended maximum length 6000mm

• Ideal Cladding profile

• Installed over plywood

• Nail Strip - No clips

• Recommended maximum sheet length – 6000 mm

• Faster install

Panelok

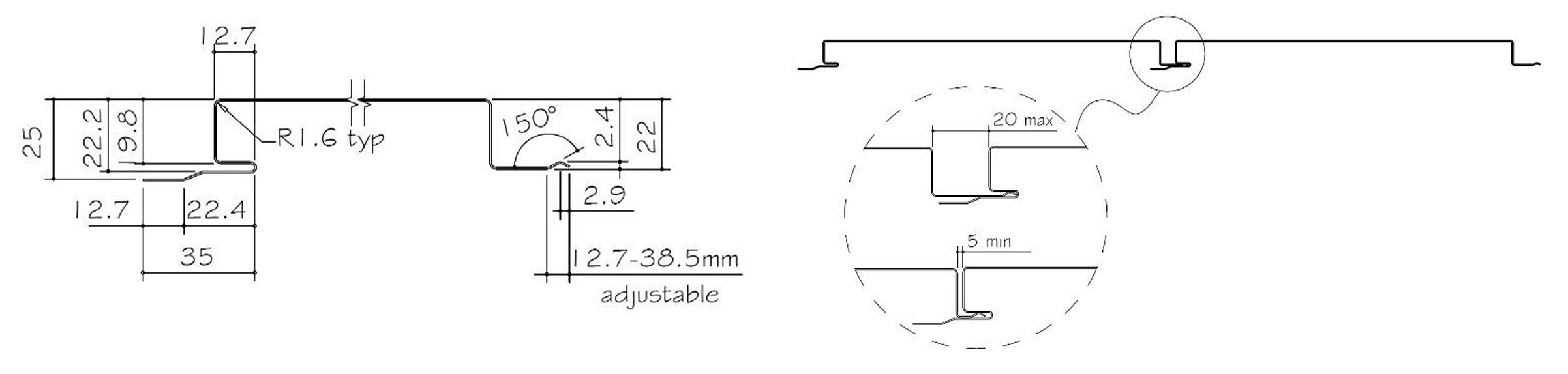

An interlocking panel available with negative detail variable recessed joint up to 15mm for soffits and wall paneling

Product Technical Statement

Download the brochure below to get comprehensive profile technical information for this product

Durability

Colorsteel logo

How to choose the right roof for your environmental conditions.

Download

How to choose the right roof for your environmental conditions.

Download

Accessories

Rainwater Goods brochure cover
Product Brochure Download

Fixings & Fasteners

Fixings and fasteners are to be of an approved type, compatible with all materials, the environment and meeting the requirements of the NZ Building Code. Installation is to be in accordance with E2/AS1 and the NZ Metal Roof and Wall Cladding Code of Practice.
Get in touch if outside the scope of E2/AS1

Drawings

Drawings can be found under CAD/PDF details on EBOSS

EBOSS logo

Maintenance Guide

Metal Roofing & Cladding maintenance brochure

Download guide

Handling & Storage Guide

Appropriate handling and storage of profiled metal roofing and cladding, translucent and transparent roofing products plus roofing accessories is important to prevent damage which in turn will limit performance once installed.  The following guidelines should be strictly followed in order to ensure the project is completed satisfactorily and meets product warranty conditions.

Download guide

Installation Guide & BPIS

Below you can find the product installation guide and Building Product Information System (BPIS), available to download.

Installation GuideInstallation GuideBPIS Class 2BPIS Class 1

Download the new Eurostyle® Brochure

Download Brochure
Eurostyle Brochure Download

Technical Specifications
