Cost efficient low rib cladding profile, particularly effective of use over a wide range

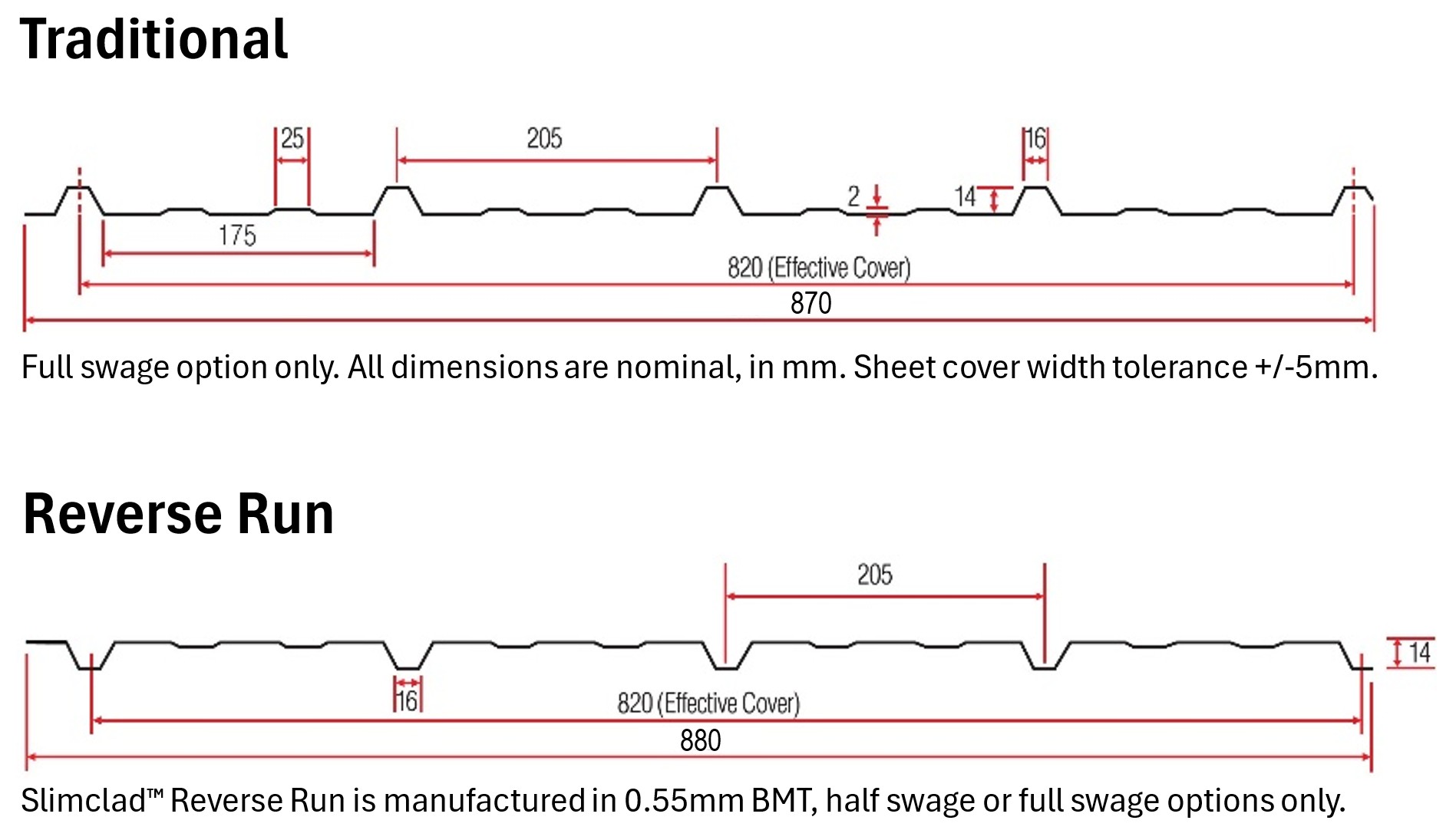

Get in touchSlimclad™ is an extremely cost efficient low rib cladding profile, particularly effective of use over a wide range of rural, commercial, and residential projects. Slimclad™ can be manufactured in a 'traditional' shape, or alternatively as an aesthetically pleasing 'reverse run' configuration, offering bird and vermin protection. A wider sheet coverage allows for rapid installation with the close nesting lap edge supported by a unique under-lap support leg, thereby displaying a virtually seamless system. Slimclad™ is not recommended for use as trafficable roofing product, however when coupled with various substrate materials and pre-painted surface finishes, Slimclad™ is suitable as an attractive roofing product for use on smaller residential garden-type sheds and portable cabins.
A full range of matching accessories is available, including Ridging, Ridgecaps, Flashings, Underlays, Insulation, Fasteners, Rotary Roof Ventilators and Rainwater systems.
.png)
.webp)
Fixings and fasteners are to be of an approved type, compatible with all materials, the environment and meeting the requirements of the NZ Building Code. Installation is to be in accordance with E2/AS1 and the NZ Metal Roof and Wall Cladding Code of Practice
In accordance with E2/AS1 of the NZ Building Code, the minimum pitch for Slimclad™ is 5° and sheet length less than 3 metres is recommended.

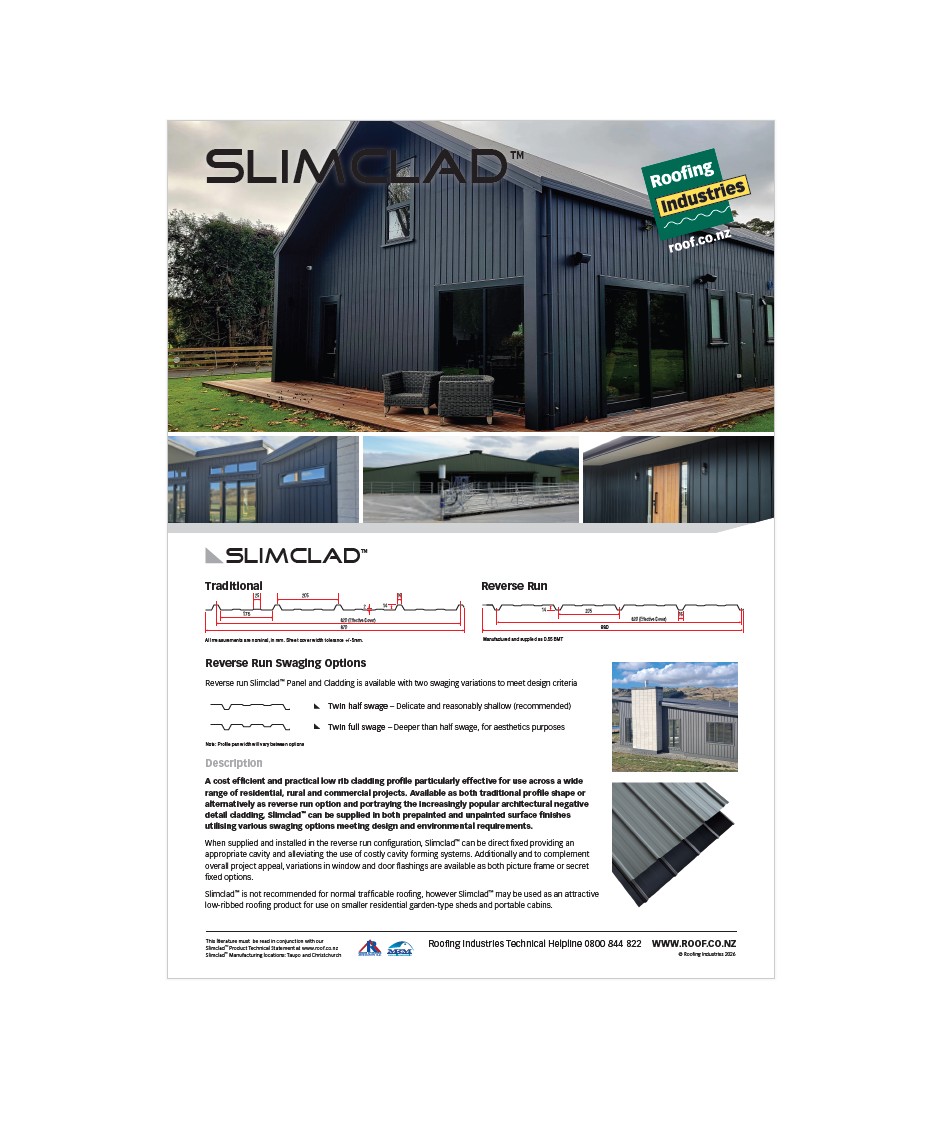

Download the brochure below to get comprehensive profile technical information for this product
Zincalume® Steel: 0.40mm or 0.55mm BMT, AZ150 (150gm/m²) G550 Mpa Yield Stress Galvanised Steel: 0.40mm or 0.55mm BMT, Z450 (450gm/m²) G550 Mpa Yield Stress Pre-painted
A full range of matching accessories is available, including Ridging, Ridgecaps, Flashings, Underlays, Insulation, Fasteners, Rotary Roof Ventilators and Rainwater systems.
Fixings and fasteners are to be of an approved type, compatible with all materials, the environment and meeting the requirements of the NZ Building Code. Installation is to be in accordance with E2/AS1 and the NZ Metal Roof and Wall Cladding Code of Practice.
Get in touch if outside the scope of E2/AS1
Drawings can be found under CAD/PDF details on EBOSS
.jpg){kind=icon}
Metal Roofing & Cladding maintenance brochure
Download guideAppropriate handling and storage of profiled metal roofing and cladding, translucent and transparent roofing products plus roofing accessories is important to prevent damage which in turn will limit performance once installed. The following guidelines should be strictly followed in order to ensure the project is completed satisfactorily and meets product warranty conditions.
Download guideZincalume® Steel: 0.40mm or 0.55mm BMT, AZ150 (150gm/m²) G550 Mpa Yield Stress Galvanised Steel: 0.40mm or 0.55mm BMT, Z450 (450gm/m²) G550 Mpa Yield Stress Pre-painted
Below you can find the product installation guide and Building Product Information System (BPIS), available to download.
Installation GuideBPIS Class 2BPIS Class 1Slimclad™ is an extremely cost efficient low rib cladding profile, particularly effective of use over a wide range of rural, commercial, and residential projects. Slimclad™ can be manufactured in a 'traditional' shape, or alternatively as an aesthetically pleasing 'reverse run' configuration, offering bird and vermin protection. A wider sheet coverage allows for rapid installation with the close nesting lap edge supported by a unique under-lap support leg, thereby displaying a virtually seamless system.
Download BrochureWe have partnered up with EBOSS, ProductSpec and MasterSpec to deliver an optimal content delivery method for our customers.
