[SYSTEM CODES]
ZINCALUME :

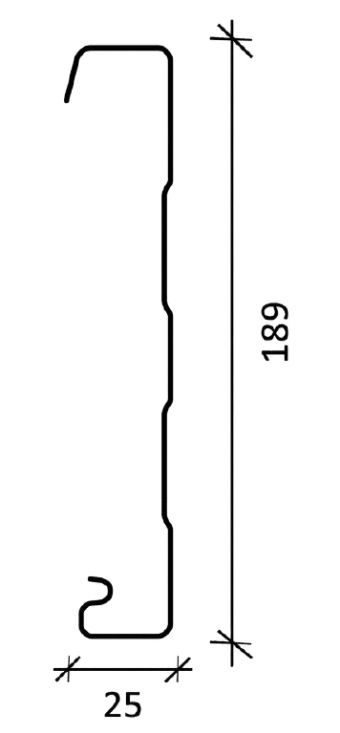

Multifit Internal Fascia 190mm 0.55 ZINCALUME = [MFI190ZIN]
Multifit External Fascia 190mm 0.55 ZINCALUME = [MFF190ZIN]
COPPER :
Multifit Internal Fascia 190mm 0.55 COPPER = [MFI190CPR]
MAGNAFLOW [MFS], MAXX [MXX], ALUMIGARD [AGS]:
Choose the appropriate COLOR after the CODE (EX: [ISA] = IRONSAND) & then the MATERIAL ([MFS] [MXX] or [AGS]) if applicable
EX: [MFI.55190ISAMFS] = Multifit Internal Fascia 190mm 0.55 MagnaFlow (MFS) (Ironsand)
190 INTERNAL : [MFI.55190]
190 EXTERNAL : [MFF.55190]
80mm Ezi-Flo Zincalume Metal Downpipe : [ACCDPZ080ZIN]
Powder Coated Accessories Supplied in Mill Finish [MIL]
80mm Ezi-Flo Copper Metal Downpipe : [ACCDPZ080CPR]
Galvanised : 80mm Round Galv Downpipe 2.4m Length Socket One End : [ACCDWW080GLV]
Stainless : 80mm Round SS 445m2 Downpipe 2.4m Length Socket One End : [ACCDWW080SS]
COLORCOTE : Colour after the CODE (EX: [ISA] = IRONSAND) & MATERIAL (Magnaflow [MFS])
80mm Ezi-Flo MagnaFlow Metal Downpipe : [ACCDPZ080[Colour]MFS]
COLORSTEEL : Colour after the CODE (EX: [FLX] = FLAXPOD) & MATERIAL (Maxx [MXX] or Matte [MTX]) if applicable
80mm Ezi-Flo Maxx Metal Downpipe : [ACCDPZ080[Colour]MXX]
80mm Matte Maxx Metal Downpipe (Flaxpod=FLX, SnowStone =SNS, Tidaldrift=TID) : [ACCDWN080[Colour]MTX]
Powder Coated Accessories to state, “Required for Extruded Aluminium Downpipes” on order
A comprehensive selection of modern and contemporary spouting systems designed to be both functional, aesthetically pleasing and suited to most residential and some commercial applications irrespective of roofing style and materials used.
100mm Ezi-Flo Zincalume Metal Downpipe : *Up to 6 Meters only* [ACCDPZ100ZIN]
Powder Coated Accessories Supplied in Mill Finish [MIL]
100mm Copper Metal Downpipe with Socket One End : *Up to 6 Meters only* [ACCDWNS100CPR]
No standard Accessories – Custom MTO Components
100mm Ezi-Flo Galvanised Metal Downpipe Socket One End : *Up to 6 Meters only* [ACCDPZ100GLV]
No standard Accessories – Custom MTO Components
Stainless : 100mm Round SS 445m2 Downpipe 2.4m Length Socket One End : [ACCDWW100SS]
No standard Accessories – Custom MTO Components
COLOR after the CODE (EX: [ISA] = IRONSAND) & MATERIAL (Maxx [MXX], Magnaflow [MFS]) if applicable
100mm Ezi-Flo MagnaFlow Metal Downpipe : *Up to 6 Meters only* [ACCDPZ100[Colour]MFS]
100mm Ezi-Flo Matte Maxx Metal Downpipe (Flaxpod=FLX, SnowStone =SNS, Tidaldrift=TID) : *Up to 6 Meters only* [ACCDPZ100[Colour]MTX]
Extruded Aluminium : Colour after the CODE (EX: [ISA] = IRONSAND) 100mm Ezi-Flo Round Ext Ali Downpipe 3.2m Length (Ironsand) : ACCEXD100RNDALI3.2[Colour]
Powder Coated Accessories to state, “Required for Extruded Aluminium Downpipes” on order
150mm Ezi-Flo Zincalume Metal Downpipe : *Up to 6 Meters only* [ACCDPZ150ZIN]
Powder Coated Accessories Supplied in Mill Finish [MIL]
150mm Round Copper Metal Downpipe Socket One End : *Up to 6 Meters Only* [ACCDWN150CPR]
150mm Outer Dimension
No standard Accessories – Custom MTO Components
150mm Round Galvanised Metal Downpipe Socket One End : *Up to 6 Meters Only* [ACCDWN150GLV]
150mm Outer Dimension
No standard Accessories – Custom MTO Components
Stainless : 150mm Round SS 445m2 Downpipe 2.4m Length Socket One End : [ACCDWW150SS]
150mm Outer Dimension
No standard Accessories – Custom MTO Components
COLOR after the CODE (EX: [ISA] = IRONSAND) & MATERIAL (Maxx [MXX], Magnaflow [MFS]) if applicable
150mm Ezi-Flo MagnaFlow Metal Downpipe : *Up to 6 Meters only* [ACCDPZ150[Colour]MFS]
150mm Ezi-Flo Matte Maxx Metal Downpipe (Flaxpod=FLX, SnowStone =SNS, Tidaldrift=TID) : *Up to 6 Meters only* [ACCDPZ150[Colour]MTX]
150mm Round AlumiGard Downpipe 2.4m Length Socket One End : [ACCDWW150[Colour]AGS]
150mm Outer Dimension
Dependent on Coil Availability
No standard Accessories – Custom MTO Components
75 X 55 Rectangle Downpipe 0.55 Zincalume : [ACCSDP75X55ZIN]
Powder Coated Accessories Supplied in Mill Finish [MIL]
Can be folded to a length of 6 meters
75 X 55 Rectangle Downpipe 0.55 Copper : [ACCSDP75X55CPR]
Can be folded to a length of 6 meters
75 X 55 Rectangle Downpipe 0.55 Stainless 445 : [ACCSDP75X55SS]
Can be folded to a length of 6 meters
COLORCOTE : Colour after the CODE (EX: [ISA] = IRONSAND) & MATERIAL (Magnaflow [MFS])
75 X 55 Rectangle Downpipe 0.55 MagnaFlow : ACCSDP75X55[Colour]MFS
Can be folded to a length of 6 meters
COLORSTEEL : Colour after the CODE (EX: [FLX] = FLAXPOD) & MATERIAL (Maxx [MXX] or Matte [MTX]) if applicable
75 X 55 Rectangle Downpipe 0.55 Maxx : [ACCSDP75X55[Colour]MXX]
75 X 55 Rectangle Downpipe 0.55 Matte Maxx (Flaxpod=FLX, SnowStone =SNS, Tidaldrift=TID) : [ACCSDP75X55[Colour]MTX]
Can be folded to a length of 6 meters
100 X 55 Rectangle Downpipe 0.55 Zincalume : [ACCSDP100X55ZIN]
Powder Coated Accessories Supplied in Mill Finish [MIL]
Can be folded to a length of 6 meters
100 X 55 Rectangle Downpipe 0.55 Copper : [ACCSDP100X55CPR]
Can be folded to a length of 6 meters
100 X 55 Rectangle Downpipe 0.55 Stainless 445 : [ACCSDP100X55SS]
Can be folded to a length of 6 meters
COLORCOTE : Colour after the CODE (EX: [ISA] = IRONSAND) & MATERIAL (Magnaflow [MFS])
100 X 55 Rectangle Downpipe 0.55 MagnaFlow : [ACCSDP100X55[Colour]MFS]
Can be folded to a length of 6 meters
COLORSTEEL : Colour after the CODE (EX: [FLX] = FLAXPOD) & MATERIAL (Maxx [MXX] or Matte [MTX]) if applicable
100 X 55 Rectangle Downpipe 0.55 Maxx : [ACCSDP100X55[Colour]MXX]
100 X 55 Rectangle Downpipe 0.55 Matte Maxx (Flaxpod=FLX, SnowStone =SNS, Tidaldrift=TID) : [ACCSDP100X55[Colour]MTX]
Can be folded to a length of 6 meters
Extruded Aluminium : Colour after the CODE (EX: [ISA] = IRONSAND) Ezi-Flo 100 x 55mm Ext Ali Downpipe 3.2m Length (Ironsand) : ACCEXD100ALI3.2[Colour]
Powder Coated Accessories to state, “Required for Extruded Aluminium Downpipes” on order
An extremely practical and attractive Metal Fascia system and available with a smoother embossed faced option. As the name suggests, Multifit™ external fascia can be used in conjunction with all roof and spouting types, is suitable for a large number of building designs and incorporates a proprietary attachment system.
Multifit™ external fascia has become the popular fascia system mostly replacing the timber fascia of yesteryear. Simply select your desired spouting type and is fitted to the outside fascia with adjustable proprietary brackets.
Multifit™ fascia is supplied up to 8000mm in length in a wide range of metal substrates and surface finishes including, Colorcote®, Colorsteel®, Copper, Stainless Steel, aluminium, Galvanised, Zinc Alloy Magnesium, Zincalume® and Zinc. Additional specialised substrates and paint coatings may be available subject to minimum order.
Important: Surface undulation “Oil Canning” Oil canning is defined as a perceived waviness across the flat area of(in particular, but not limited to) wider metal panels. It is a naturally-occurring phenomenon and can be more discernibleunder shallow cross lighting, variation in light source, temperature and thermal changes. Oil canning is an aesthetic issueand not a structural problem or defect. The property owner, builder, specifier should be aware that these undulations donot affect performance.
[SYSTEM CODES]
ZINCALUME :
MULTIFIT FASCIA 136mm 0.55 ZINCALUME = [MFF136ZIN]
MULTIFIT FASCIA 150mm 0.55 ZINCALUME = [MFF150ZIN]
MULTIFIT FASCIA 185mm 0.55 ZINCALUME = [MFF185ZIN]
MAGNAFLOW [MFS], MAXX [MXX], ALUMIGARD [AGS]:
Choose the appropriate COLOR after the CODE (EX: [ISA] = IRONSAND) & then the MATERIAL ([MFS] [MXX] or [AGS]) if applicable
EX: [MFF.55136ISAMFS] = Multifit Fascia 150mm 0.55 MagnaFlow (MFS) (Ironsand)
MULTIFIT FASCIA 136mm 0.55 MAGNAFLOW (MFS)= [MFF.55136???MFS]
MULTIFIT FASCIA 150mm 0.55 MAGNAFLOW (MFS)= [MFF.55150???MFS]
MULTIFIT FASCIA 185mm 0.55 MAGNAFLOW (MFS)= [MFF.55185???MFS]
ALUMIGARD [AGS]
MULTIFIT FASCIA 136mm 0.70 ALUMIGARD (AGS)= [MFF.70136???AGS]
MULTIFIT FASCIA 150mm 0.70 ALUMIGARD (AGS)= [MFF.70150???AGS]
MULTIFIT FASCIA 185mm 0.70 ALUMIGARD (AGS)= [MFF.70185???AGS]
COPPER
MULTIFIT FASCIA 136mm 0.55 COPPER = [MFF136CPR]
MULTIFIT FASCIA 150mm 0.55 COPPER = [MFF150CPR]
MULTIFIT FASCIA 185mm 0.55 COPPER = [MFF185CPR]
CODE : GBIMFF185PLN
Zinc
CODE : GBGMFF185PLN
Zinc
CODE : GBIMFF185SS
Stainless Steel
CODE : GBGMFF185SS
Stainless Steel
CODE : MFFSBL
Coated Steel
CODE : MFFSBR
Coated Steel
CODE : MFFSHS
Coated Steel
CODE : MFFCNR
Coated Steel
ColorCote Palette : 22 *(M)agnaflow & 7 *(A)lumigard Stock Colours
Colorsteel Palette : 14 *(MX) Maxx Stock Colours
Note – Non Stock Colours : Availability is subject to the suppliers minimum order quantity, lead times and terms of trade. Additional charges may apply. Approx. lead time up to 15 working days. Call us to check current availability.
*(M) Magnaflow *(A) Alumigard *(MX) Maxx
Important Notes
Euramax: This is offered as a buy in option. Availability is subject to the suppliers minimum order quantity, lead times and terms of trade. Additional slitting charges may apply. Approx. lead time up to 15 working days. Call us to check current availability.
Optional Finish : Available with the standard smooth finish or a woodgrain embossed finish. Additional charges apply for woodgrain finish.
Standard Leadtime : Up to 5 working days.
Sloping Soffit : Available on request. Max 35° pitch.
Freight : Maximum transportable length 9 m (If shipping via external carrier max length is 8.0m, additional freight and packaging charges apply).
Powder coated brackets available on request. Approx. lead time is up to 7 working days. Additional charges apply.
Copper fascia requires stainless brackets.
CODE : EZIQTRI[Colour]
EZL001
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZIQTRE[Colour]
EZL002
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZIOG5I[Colour]
EZL003
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZIOG5E[Colour]
EZL004
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZIOLDI[Colour]
EZL005
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZIOLDC[Colour]
EZL006
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZIOLDE[Colour]
EZL007
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZI125I[Colour]
EZL008
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZI125E[Colour]
EZL009
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZIHLFI[Colour]
EZL010
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZIHLFE[Colour]
EZL011
212G Including Feet
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZITAYI[Colour]
EZL012
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZIMLYI[Colour]
EZL013
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZINLNI[Colour]
EZL014
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZICQRE[Colour]
EZL015
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZICQRI[Colour]
EZL016
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZICTLE[Colour]
EZLV01
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZIMTLE[Colour]
EZLV02
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
CODE : EZILR[Colour]
EZLV03
Colours in [ISA] Ironsand & [SHG] Shadow Grey
Perforated Coated Aluminium
ColorCote Palette : 22 *(M)agnaflow & 7 *(A)lumigard Stock Colours
Colorsteel Palette : 14 *(MX) Maxx Stock Colours
Note – Non Stock Colours : Availability is subject to the suppliers minimum order quantity, lead times and terms of trade. Additional charges may apply. Approx. lead time up to 15 working days. Call us to check current availability.
